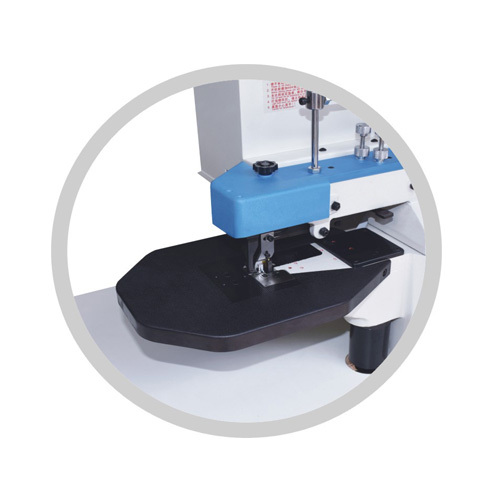

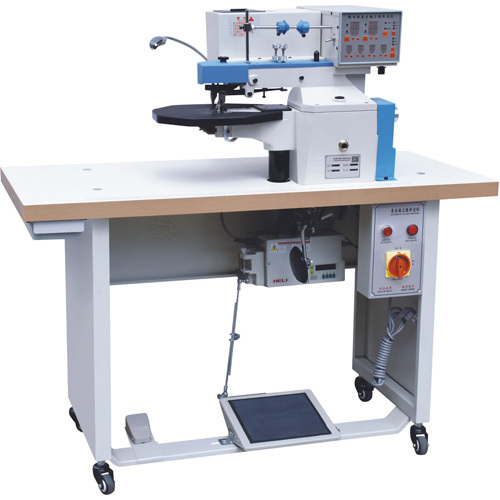

Automatic Gluing and Folding Machine, Model: LF-292

Item No.: LF-292
FOB Price:
Get Latest Price
Min.Order Quantity:
1 Set/Sets
Supply Ability:
1000 Set/Sets per Month
Payment Terms:
L/C at sight, T/T,
/ Pieces

Quick Detail

Type: PVC, PU leather material making Size: 1200*550*1160MM General Use: Shoes, bag,cell-phone cover etc.
Voltage: 220V Power: 0.55KW Net Weight: 135KG
Place of Origin: Zhejiang, China (Mainland) Brand Name:      LIFENG Model Number: LF-292


This machine adapts to the material of PVC, PU leather, natural leather, leatheroid and cloth for shoes, leather bag, wallet and cell-phone cover which are made of leather. It can automatically gelatinize and fold with hot-cement.


1, The machine adopts the most advanced technology, computer control outcurve, beeline, incurve, the function of automatic shift, the work of automatic gelatinization and folding which makes all the process achieve intelligence.
2, Outside bend, straight, bend side to pull with 1-8mm range adjustable stroke respectively.
3, Adopt touch pattern control panel, temperature of melted glue, flux of glue output, process of outcurve, beeline and incurve can be adjusted by computer, numerical indication and infinitely variable adjustment of glue output.
4, Digital shows speed of the outcurve, beeline and incurve. The speed can be adjusted operation refers to different demand of material herm. Computer controls the process of shift automatically when starts to work.
5, It has function of incurved incisor (cutting with incisor automatically), the glue output system adopts double protection and the performance is excellent.
6, The width of folding can be adjusted from 3mm to 6.5mm, it can be folded with force tape together.
7, With the automatic electronic locating of servo motor, it can save 40% energy and electricity.
