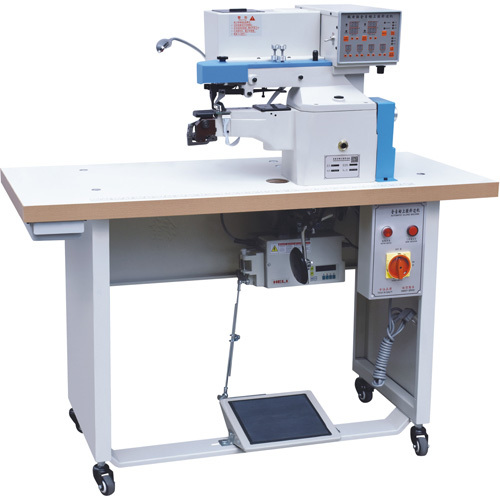

Anti-mouth Automatic Gluing & Folding Machine, Model: HM-706

Item No.: HM-706
FOB Price:
Get Latest Price
Min.Order Quantity:
1 Set/Sets
Supply Ability:
1000 Set/Sets per Month
Port:
Ningbo
Payment Terms:
L/C at sight, T/T,
$0.00
/ Pieces
Description
Description

Quick Detail

Type: PVC, PU leather material making Size: 1200*550*1160MM General Use: Bag, leather industry etc.
Voltage: 220V Power: 0.55KW Net Weight: 123KG
Place of Origin: Zhejiang, China (Mainland) Brand Name:      HONGMAO Model Number: HM-706





Use

It applies to the footwear industry, the system bag industry, leather industry, mobile phone sets and other leather products, PVC, PU, natural leather, leather, canvas and other materials French folding operations.

Characters

1, The machine uses a computer chip intelligent control throughout the folding operation, the function can be set via the control panel display machines, automated electronic sensing operation leading technology, the most advanced equipment in the industry hem. Set automatic gluing, electronic servo motor positioning and French piping to ensure uniform width at hem, and fold into the end.
2, Using computer chip processing circuitry within the step motor control curved, linear, outside pitch bend function.
3, Outside bend, straight, bend side to pull with 1-8mm range adjustable stroke respectively.
4, Glue double protection system, automatic glue-sniffing, not hanging plastic.
5, Electronic servo motor automatic positioning, energy saving 70%.
6, Be folded into the sills to enhance the tensile strength of leather edges.

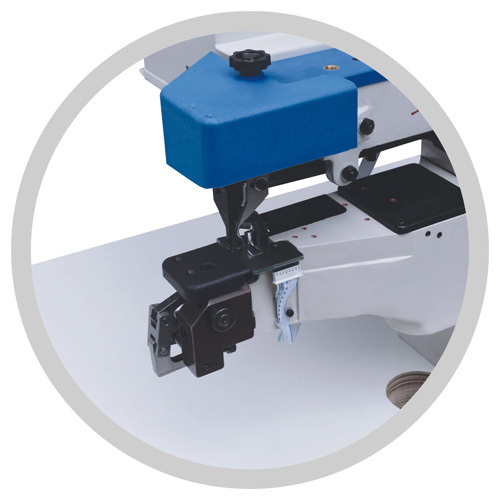

7, Equipped with folding parts can easily replace trans, trans hold dual hem.
